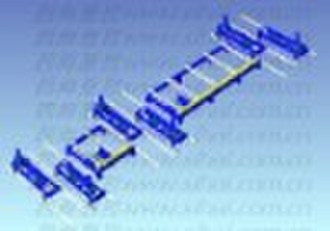

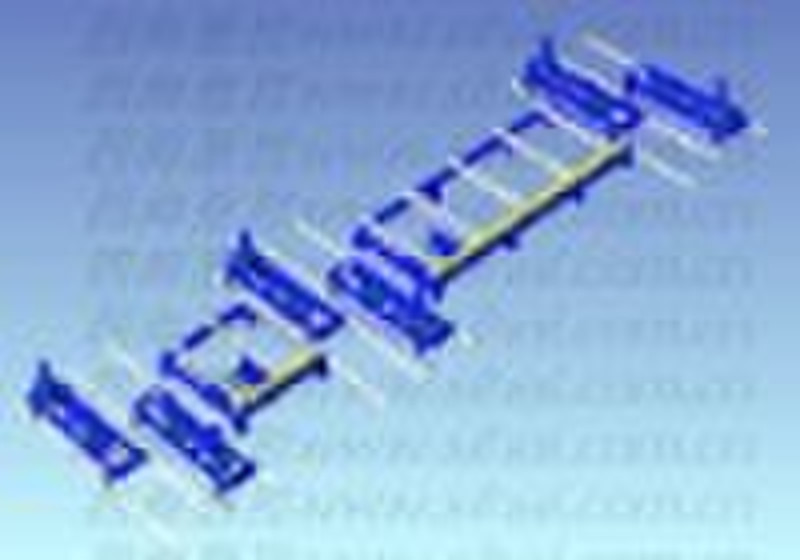

45-90 Degrees Turnover Mechanism Type SKYF

I. Brief Introduction of the Product A. Function and Usage It is mainly used for turnover H-beam by 45º and 90º on the automatic H-beam production line. It is easy in structure and convenient in operation. And it can be used instead of crane. B. Specifications and Devices Height of web: 250 1500mm Width of flange: 200 800mm Length of H-beam: 4000 15000mm Traveling speed: 11m/min. Bearing capacity: 10 tons (each group / 3 sets) Length of track: 5000mm Size of the single machine: 2390×580×1340mmL x W x H Turnover angle: 45º and 90º II. Structure and Composition A. Description The device is a right angle, the worm wheel and worm under the device are driven by the decelerator. The decelerator derives the worm wheel and worm to complete the turnover of 45º and 90º of workpieces. 90º turnover devices for H-beam are adopted with mechanical structure. The turnover device is supported on the seat of parallel moving stand, and it covers a small area. The turnover of H-beam is adopted with the balance pointer wheel decelerator, which drives the worm wheel and worm. Parallel moving is controlled by worm wheel decelerator box. III. Technical Documents Attached to the Machine 1. SKYF-G 45°- 90º operation introduction 2. SKYF-G 45°- 90º electrical wiring chart and electric principle diagram 3. SKYF-G 45°- 90º service manual 4. Certificate of quality 5. List of easily-worn parts and drawing 6. Packing list 7. Quality information feedback list or acceptance report
